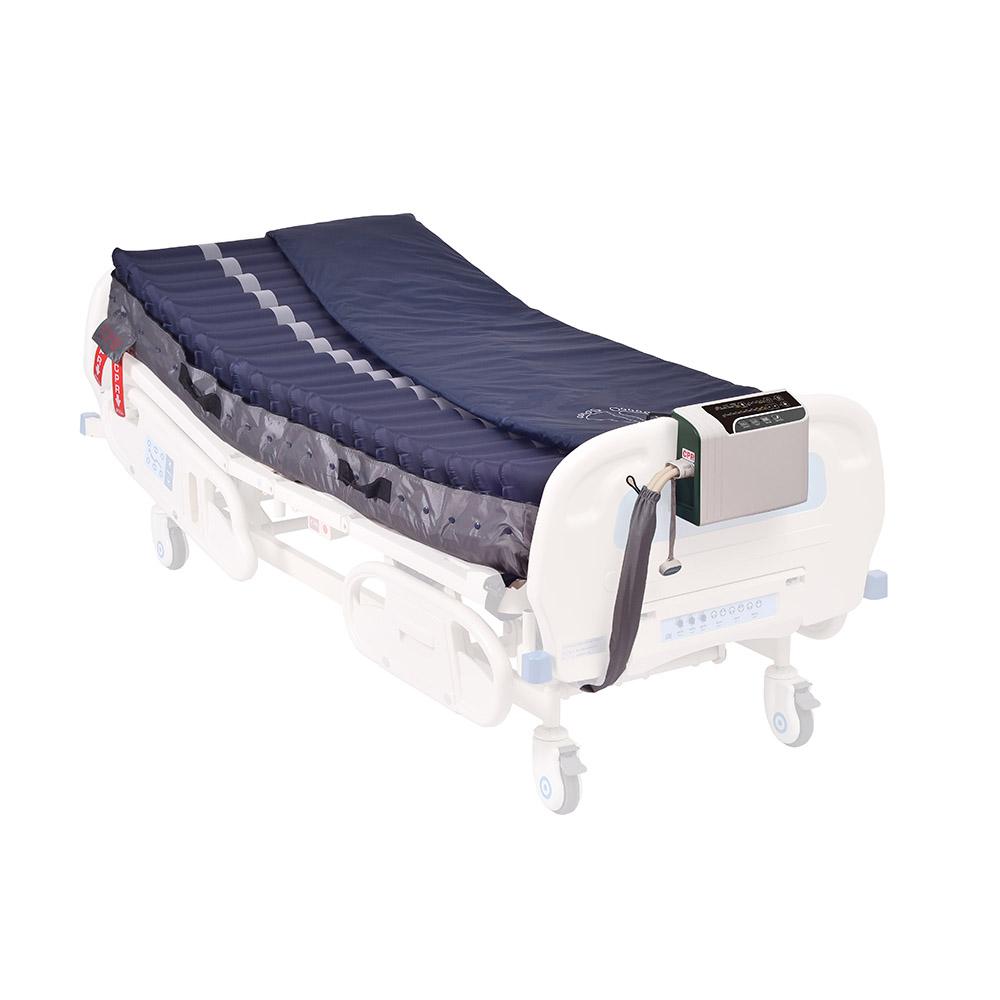

Description
Quick Connector with Cap
• Ensures Mattress remains inflated during power outage or patient transport.
CPR function
• Allows rapid deflation in case of medical emergencies.
• Designed for one handed operation.
• Positioned at head end.
Pillow Function
• Head zone comprised of three fully inflated static air cells to provide patient comfort.
Square Cell-on-Cell Bladder
• Unique two-layer cell structure provides both alternation therapy and constant support in case of power-outage
or transportation.
Heel Function
• Provides single air cell deflation to float the heels with zero pressure.
Spring-loaded Tube
• Spring are emplaced within air tubes to prevent unnecessary bending of tubes and ensure consistent airflow.
• Incorporates an 8 inch cell-on-cell mattress design that can maintain basic support during power failure or
patient transport.
• Utilizes Bi-elastic Nylon/PU top cover that is water resistant, vapor permeable, and anti-bacterial.
Specifications:Weight Setting Control: Digital
Dimension: 12.2”L x 4.9”W x 8.25”H
Weight: 5.5 lbs
Air Output: 9 liter/min
Case Material: Flame Retardant Abs
Pressure Range: 20-55 mmHg
Cycle Time: 10/15/20/25 min
Power Supply: 120V/60 Hz
Power Cord Length: 14' 9"
Inflated Dimension: 80”L x 35”W x 8”H
Alternating: A/B Alternating
Structure: 20 x 8” Cell on Cell
Cover Material: Nylon/PU Quilted with Zipper
Cell Material: Nylon/TPU
Base Material: Durable Nylon/PVC 840D
Maximum Weight Capacity: 450 lbs
Flame Retardant Standards: BS6807 Crib 5/ BS7175 Crib 5
